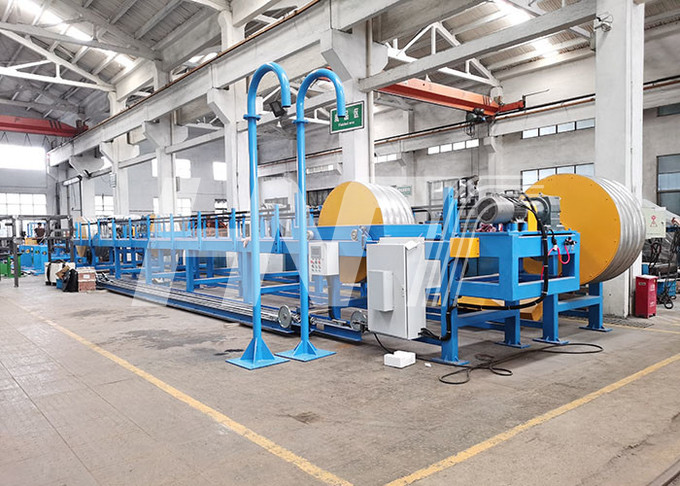

Horizontal CCV Line Electrical Wire Accumulator With A Pneumatic Clamping Device

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Application Max. Wire Dia. : 1000mm²

Accumulator Length : 120m

Line Speed : 15M

Moving wheels : 4

wire storage material : wire storage material

Application : Accumulator big section cable

Contact Now

220KV Cable Accumulator For CCV Line:

Application:

MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The wire accumulator is configured on the catenary production lioduct quality. It is one of the necessary equipment on the cross-linking production line.

Characteristic:

The wire accumulator is equipped with a pneumatic clamping device, used with the wire accumulator, which is convenient for production operation.
The tension of the cable between the two wheels is controlled by electricity
Different cables use corresponding traction speed, which can be realized by motor speed regulation.
The tension at the outlet of the accumulator is constant.

Technical Parameter:

Model	MHEDB1400\|2000/5 + 6/120
Accumulator wheel diameter	2000 mm
Maximum conductor diameter	1000 mm²
Accumulator Length	120 m
Number of moving wheels	4
Number of stationary wheels	5
installation length	15M
wire storage material	Aluminum alloy
Maximum design line speed	25 m/min
line speed is continuously adjusted by the variable frequency drive and the AC motor	1-25m/min
